Diffraction project datasets KlaeA_01563_a_B1-PEG_8u93
- Resolution: 1.9 Å
- Space group: P 62 2 2
Uniprot website for A0A0H3FJT8
PDB website for 8U93
PDB validation report for 8U93
doi:10.18430/m38u93
Project details

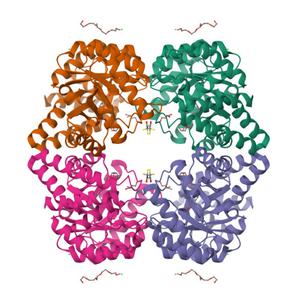

| Title | Crystal structure of N-acetylneuraminate lyase (NanA) from Klebsiella aerogenes (PEG bound) |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 96.41 x 96.41 x 205.98 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

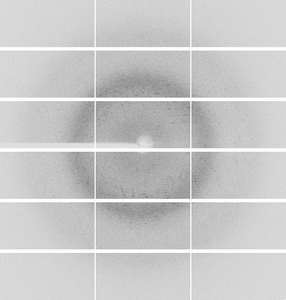

Dataset PSL-1406_87_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
