Diffraction project datasets KlaeA_00906_a_B1-PLP-GLY_8u98
- Resolution: 1.4 Å
- Space group: C 1 2 1
PDB website for 8U98
doi:10.18430/M38U98
Project details

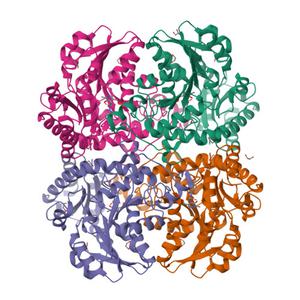

| Title | Crystal Structure of Cystathionine beta lyase from Klebsiella aerogenes (PLP-Glycine adduct) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 166.92 x 133.05 x 87.49 |
| Unit cell angles [°] | 90.0, 106.0, 90.0 |

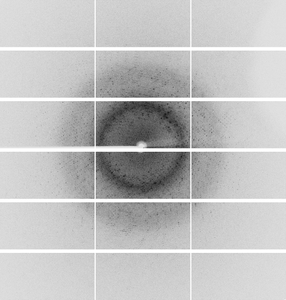

Dataset PSL-0903_7490_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
