Diffraction project datasets KAT5_240108_4qqg

Project details

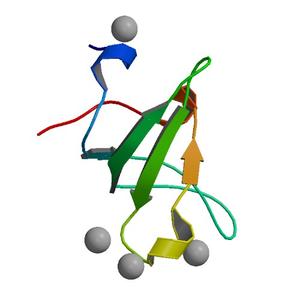

Title Crystal structure of an N-terminal HTATIP fragment
Authors Liu, Y., Tempel, W., Wernimont, A.K., Dobrovetsky, E., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC)
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 43.54 x 59.99 x 101.64
Unit cell angles [°] 90.0, 100.7, 90.0

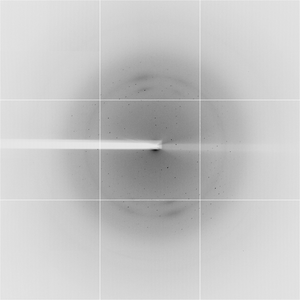

Dataset r1.####.img details

Number of frames 180 (1 - 180)
Distance [mm] 200.0
Oscillation width [°] 1.00
Omega [°] -90.0
Wavelength [nm] 1.28303
Experiment Date 2013-02-11
Equipment 19-ID at APS (Advanced Photon Source)
