Diffraction project datasets IDP97675_7mh7
- Resolution: 2.61 Å
- Space group: P 64 2 2
PDB website for 7MH7
PDB validation report for 7MH7
doi:10.18430/m37mh7
Project details
| Title | crystal structure of NAD kinase from Pseudomonas aeruginosa PAO1 |
| Authors | Chang, C., Evdokimova, E., Savchenko, A., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 99.17 x 99.17 x 121.87 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

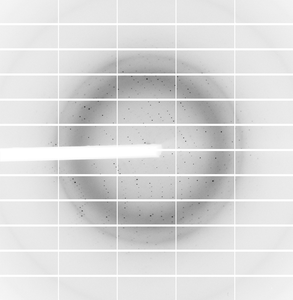

Dataset xBs1_#####.cbf details
| Number of frames | 467 (1 - 467) |
| Distance [mm] | 493.5 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2019-10-11 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

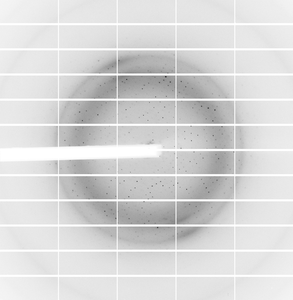

Dataset xBs2_#####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 493.5 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2019-10-11 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
