Diffraction project datasets IDP97301_6u0i
- Resolution: 1.9 Å
- Space group: C 1 2 1
PDB website for 6U0I
PDB validation report for 6U0I
doi:10.18430/m36u0i
Project details

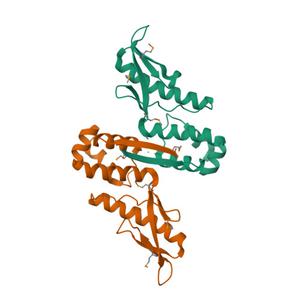

| Title | Putative Antitoxin HicB3 from Escherichia coli str. K-12 substr. DH10B |
| Authors | Osipiuk, J., Tesar, C., Endres, M., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 61.05 x 86.48 x 122.89 |
| Unit cell angles [°] | 90.0, 96.1, 90.0 |

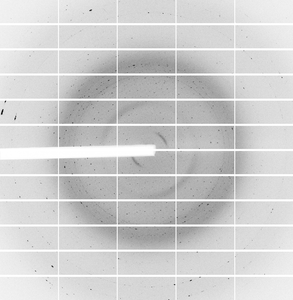

Dataset x7_14_#####.cbf details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 422.6 |
| Oscillation width [°] | 0.30 |
| Wavelength [Å] | 0.97927 |
| Experiment Date | 2019-07-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

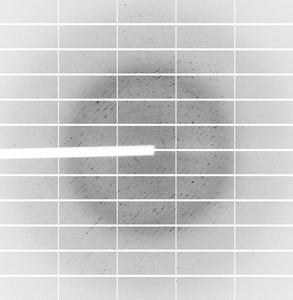

Dataset x7_14b_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 374.4 |
| Oscillation width [°] | 0.30 |
| Wavelength [Å] | 0.97927 |
| Experiment Date | 2019-07-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
