Diffraction project datasets IDP97238_6n1n

Project details

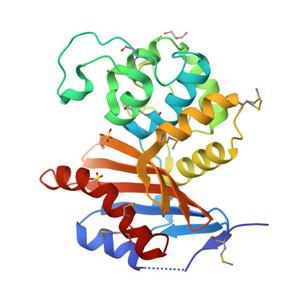

Title Crystal structure of class D beta-lactamase from Sebaldella termitidis ATCC 33386
Authors Michalska, K., Tesar, C., Endres, M., Joachimiak, A., Satchell, K.J., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 63.51 x 97.55 x 40.33
Unit cell angles [°] 90.0, 90.0, 90.0

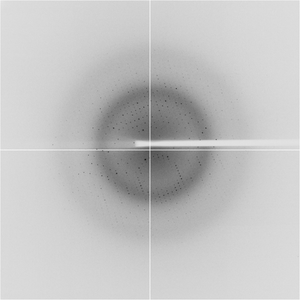

Dataset IDP97238_M1_F4_x2_data2.####.img details

Number of frames 240 (1 - 240)
Distance [mm] 125.0
Oscillation width [°] 1.00
Omega [°] -120.0
Wavelength [Å] 0.97933
Experiment Date 2018-10-19
Equipment 19-BM at APS (Advanced Photon Source)

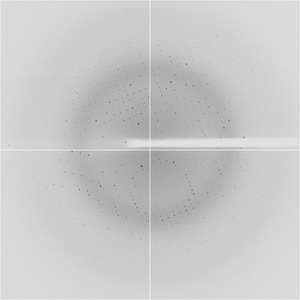

Dataset IDP97238_M1_F4_x2_data.####.img details

Number of frames 55 (1 - 55)
Distance [mm] 180.0
Oscillation width [°] 1.00
Omega [°] -120.0
Wavelength [Å] 0.97933
Experiment Date 2018-10-19
Equipment 19-BM at APS (Advanced Photon Source)
