Diffraction project datasets IDP97199_6nfd
- Resolution: 1.17 Å
- Space group: C 2 2 21
PDB website for 6NFD
PDB validation report for 6NFD
doi:10.18430/m36nfd
Project details
| Title | beta-lactamase SHV-11 from Klebsiella pneumoniae strain NTUH-K2044 |
| Authors | Osipiuk, J., Welk, L., Endres, M., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.12 / 0.13 |
| Unit cell edges [Å] | 50.16 x 123.54 x 124.48 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

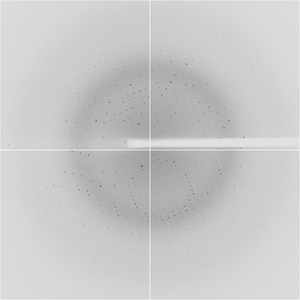

Dataset IDP97238_M1_F4_x2_data.####.img details
| Number of frames | 55 (1 - 55) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2018-10-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

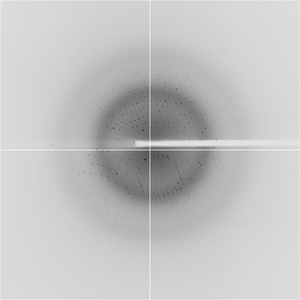

Dataset IDP97238_M1_F4_x2_data2.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 125.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -120.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2018-10-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
