Diffraction project datasets IDP96979_7unn
- Resolution: 1.45 Å
- Space group: P 21 21 21
PDB website for 7UNN
PDB validation report for 7UNN
doi:10.18430/m37unn
Project details

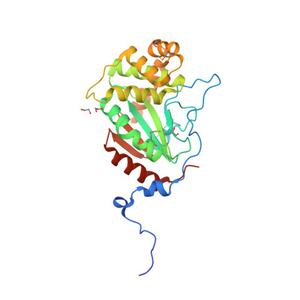

| Title | Thiol-disulfide oxidoreductase TsdA from Corynebacterium diphtheriae |
| Authors | Osipiuk, J., Reardon-Robinson, M., Nguyen, M.T., Sanchez, B., Ton-That, H., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.11 / 0.15 |
| Unit cell edges [Å] | 52.17 x 65.36 x 68.85 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

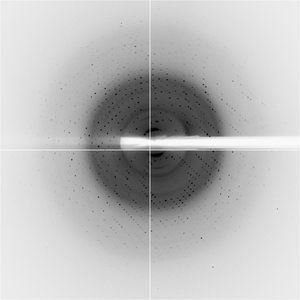

Dataset t4_c7.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 146.5 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Phi [°] | -0.004 |
| Wavelength [Å] | 0.97919 |
| Experiment Date | 2015-02-28 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
