Diffraction project datasets IDP96851_6NDI
- Resolution: 2.6 Å
- Space group: C 1 2 1
Uniprot website for A0A2W0LW10
PDB website for 6NDI
PDB validation report for 6NDI
doi:10.18430/m36ndi
Project details

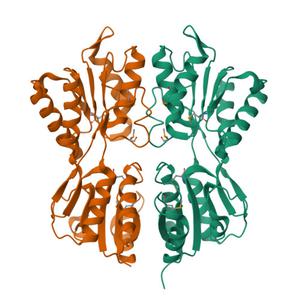

| Title | Crystal Structure of the Sugar Binding Domain of LacI Family Protein from Klebsiella pneumoniae |
| Authors | Minasov, G., Shuvalova, L., Wawrzak, Z., Kiryukhina, O., Dubrovska, I., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 180.74 x 110.48 x 37.78 |
| Unit cell angles [°] | 90.0, 97.9, 90.0 |

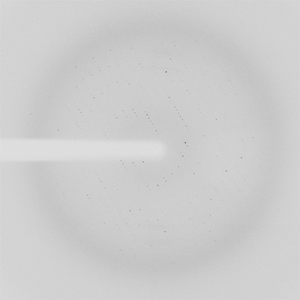

Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 32 (1 - 32) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 89 (45 - 133) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 55 (150 - 204) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 31 (206 - 236) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 31 (241 - 271) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 35 (273 - 307) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 21 (309 - 329) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 43 (348 - 390) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 64 (410 - 473) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
Dataset idp96851sm-b_1_1_2.### details
| Number of frames | 68 (505 - 572) |
| Distance [mm] | 350.0 |
| Phi [°] | -1.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2018-11-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

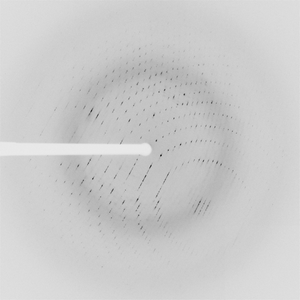

Dataset idp96925-102sm-a_1_1_2.### details
| Number of frames | 350 (1 - 350) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -25.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2018-04-11 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
