Diffraction project datasets IDP96847_6DVV
- Resolution: 2.25 Å
- Space group: P 32 2 1
Uniprot website for Q9AGA6
PDB website for 6DVV
PDB validation report for 6DVV
doi:10.18430/m36dvv
Project details

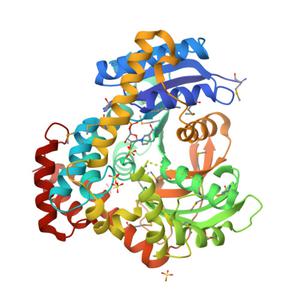

| Title | 2.25 Angstrom Resolution Crystal Structure of 6-phospho-alpha-glucosidase from Klebsiella pneumoniae in Complex with NAD and Mn2+. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Endres, M., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.22 |
| Unit cell edges [Å] | 86.03 x 86.03 x 230.78 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

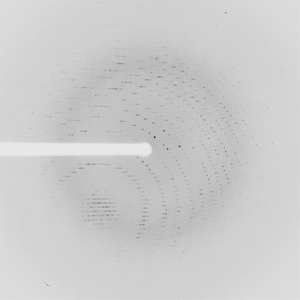

Dataset idp96847-102sm-cut-b_2_1_9.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 240.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2018-06-06 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
