Diffraction project datasets IDP95941_5SWV
- Resolution: 2.65 Å
- Space group: P 61 2 2
Uniprot website for Q9P7R0
PDB website for 5SWV
PDB validation report for 5SWV
doi:10.18430/m35swv
Project details

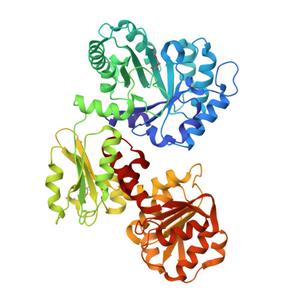

| Title | Dehydroquinate dehydratase and shikimate dehydrogenase from S. pombe AroM |
| Authors | Light, S.H., Minasov, G., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 121.80 x 121.80 x 191.85 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset Arom4-j_######.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 90.0 |
| Wavelength [Å] | 1.03329 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

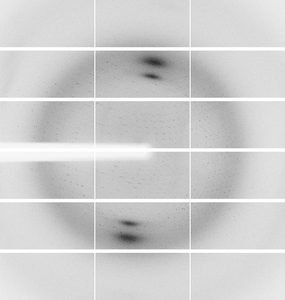

Dataset beam.001_master.h5@##### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 90.0 |
| Wavelength [Å] | 1.03329 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
