Diffraction project datasets IDP95938_6c5c

Project details

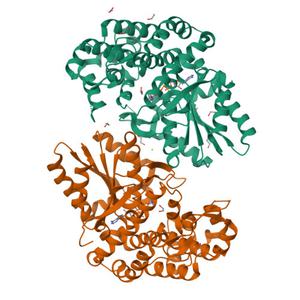

Title Crystal structure of Aro1p from Candida albicans SC5314 in complex with NADH
Authors Michalska, K., Evdokimova, E., Di Leo, R., Stogios, P.J., Joachimiak, A., Satchell, K., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 50.68 x 92.06 x 88.92
Unit cell angles [°] 90.0, 97.6, 90.0

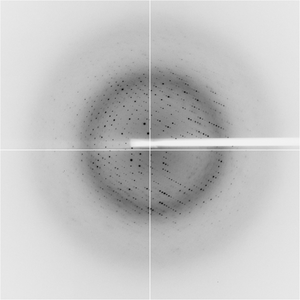

Dataset CAA0080_NADH_data.####.img details

Number of frames 360 (1 - 360)
Distance [mm] 160.0
Oscillation width [°] 0.50
Omega [°] -120.0
Wavelength [nm] 0.97933
Experiment Date 2017-12-05
Equipment 19-BM at APS (Advanced Photon Source)

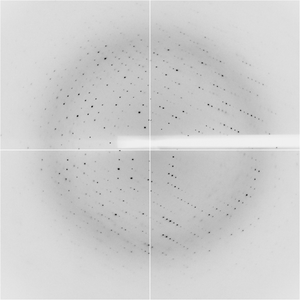

Dataset CAA0080_NADH_low2.####.img details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Omega [°] -120.0
Wavelength [nm] 0.97933
Experiment Date 2017-12-05
Equipment 19-BM at APS (Advanced Photon Source)
