Diffraction project datasets IDP95820_6u5a
- Resolution: 2.65 Å
- Space group: P 61
PDB website for 6U5A
PDB validation report for 6U5A
doi:10.18430/m36u5a
Project details

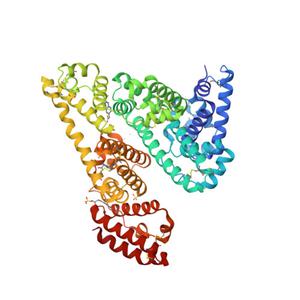

| Title | Crystal structure of Equine Serum Albumin complex with 6-MNA |
| Authors | Czub, M.P., Handing, K.B., Venkataramany, B.S., Cymborowski, M.T., Shabalin, I.G., Satchell, K.J., Joachimiak, A., Minor, W., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.26 |
| Unit cell edges [Å] | 94.29 x 94.29 x 142.02 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

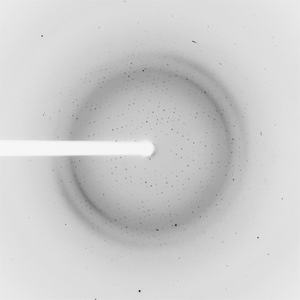

Dataset ES9-CG334A_S.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -50.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-04-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
