Diffraction project datasets IDP95802_6w1w

Project details

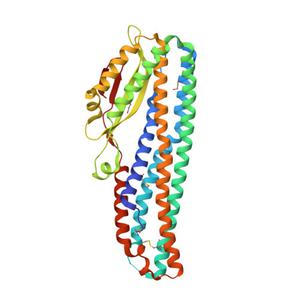

Title Crystal Structure of Motility Associated Killing Factor B from Vibrio cholerae
Authors Kim, Y., Welk, L., Jedrzejczak, R., Endres, M., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.28 / 0.29
Unit cell edges [Å] 137.72 x 137.72 x 233.83
Unit cell angles [°] 90.0, 90.0, 120.0

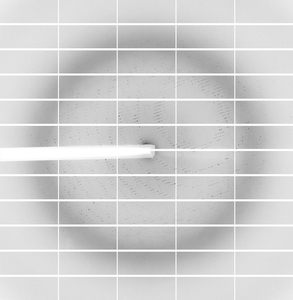

Dataset m2c3e2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 530.1
Oscillation width [°] 0.50
Wavelength [Å] 0.97918
Experiment Date 2018-06-27
Equipment 19-ID at APS (Advanced Photon Source)
