Diffraction project datasets IDP95756_5VIS
- Resolution: 1.73 Å
- Space group: P 64 2 2
PDB website for 5VIS
doi:10.18430/M35VIS
Project details

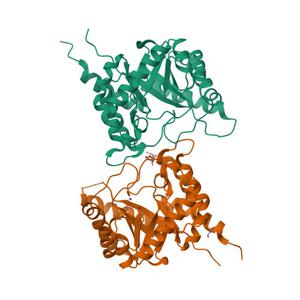

| Title | 1.73 Angstrom Resolution Crystal Structure of Dihydropteroate Synthase (folP-SMZ_B27) from Soil Uncultured Bacterium. |
| Authors | Minasov, G., Wawrzak, Z., Di Leo, R., Skarina, T., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 101.82 x 101.82 x 206.14 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

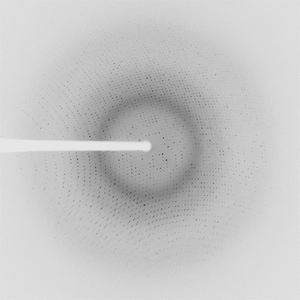

Dataset IDP95756-4.### details
| Number of frames | 83 (1 - 83) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.60 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-02-16 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
