Diffraction project datasets IDP95745_5T1V
- Resolution: 3.1 Å
- Space group: P 41 21 2
PDB website for 5T1V
doi:10.18430/m35t1v
Project details

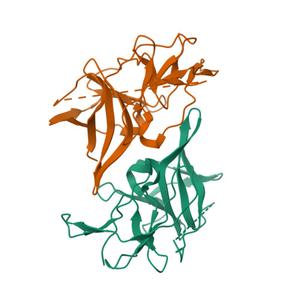

| Title | Crystal structure of Zika virus NS2B-NS3 protease in apo-form. |
| Authors | Nocadello, S., Light, S.H., Minasov, G., Shuvalova, L., Cardona-Correa, A.A., Ojeda, I., Vargas, J., Johnson, M.E., Lee, H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.29 |
| Unit cell edges [Å] | 55.09 x 55.09 x 249.20 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

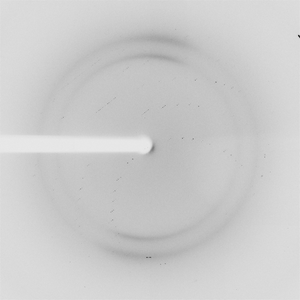

Dataset P15ScNSc-a_1_3_5.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 10.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-06-21 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
