Diffraction project datasets IDP95729_5TXG
- Resolution: 2.05 Å
- Space group: P 1 21 1
Uniprot website for A0A0X8GJ44
PDB website for 5TXG
PDB validation report for 5TXG
doi:10.18430/m35txg
Project details

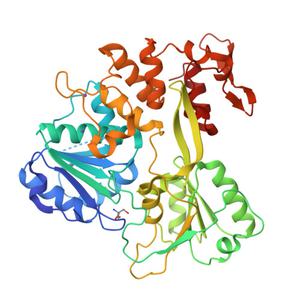

| Title | Crystal structure of the Zika virus NS3 helicase. |
| Authors | Nocadello, S., Light, S.H., Minasov, G., Shuvalova, L., Cardona-Correa, A.A., Ojeda, I., Vargas, J., Johnson, M.E., Lee, H., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 51.64 x 69.86 x 58.46 |
| Unit cell angles [°] | 90.0, 93.4, 90.0 |

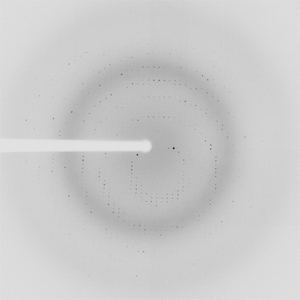

Dataset idp95729-2-b_2_1_2.### details
| Number of frames | 350 (1 - 350) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -40.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-08-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
