Diffraction project datasets IDP95705_5KVR
- Resolution: 1.36 Å
- Space group: P 31 2 1
Uniprot website for P0ACM0
PDB website for 5KVR
PDB validation report for 5KVR
doi:10.18430/m35kvr
Project details

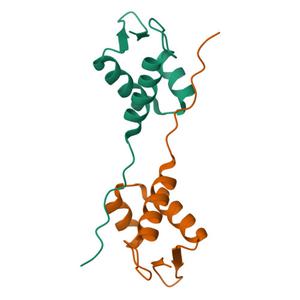

| Title | X-Ray Crystal Structure of a Fragment (1-75) of a Transcriptional Regulator PdhR from Escherichia coli CFT073 |
| Authors | Brunzelle, J.S., Wawrzak, Z., Sandoval, J., Skarina, T., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 45.27 x 45.27 x 59.16 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

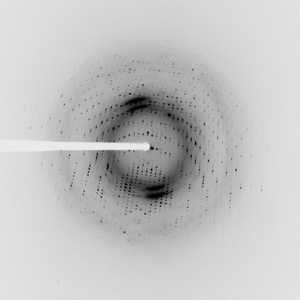

Dataset IDP95705-1.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-07-06 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
