Diffraction project datasets IDP95696_6B8W
- Resolution: 1.9 Å
- Space group: P 41 21 2
Uniprot website for A0A0H3CJW2
PDB website for 6B8W
PDB validation report for 6B8W
doi:10.18430/m36b8w
Project details

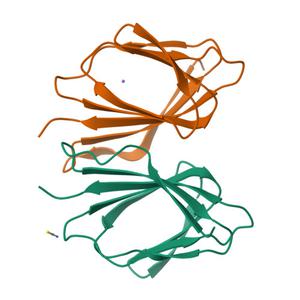

| Title | 1.9 Angstrom Resolution Crystal Structure of Cupin_2 Domain (pfam 07883) of XRE Family Transcriptional Regulator from Enterobacter cloacae. |
| Authors | Minasov, G., Wawrzak, Z., Skarina, T., McChesney, C., Grimshaw, S., Sandoval, J., Satchell, K.J.F., Savchenko, A., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 66.27 x 66.27 x 116.32 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

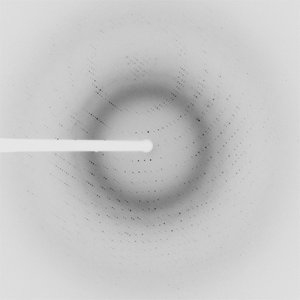

Dataset IDP95696-3_1_3_9_b.### details
| Number of frames | 107 (1 - 107) |
| Distance [mm] | 270.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-08-12 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
