Diffraction project datasets IDP95642_5tvl
Project details
Title |

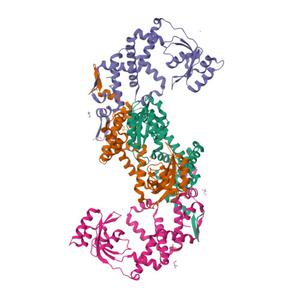

Crystal structure of foldase protein PrsA from Streptococcus pneumoniae str. Canada MDR_19A |
Authors |
Center for Structural Genomics of Infectious Diseases (CSGID) |
R / Rfree |
0.23 / 0.30 |
Unit cell edges [Å] |
72.32 x
70.94 x
116.63
|
Unit cell angles [°] |
90.0,
91.5,
90.0
|
Dataset STR0003-1.### details
Number of frames |
390 (1 - 390) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Wavelength [Å] |
0.97872 |
Experiment Date |
2012-10-07 |
Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset STR0003-1b.### details
Number of frames |
100 (1 - 100) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Phi [°] |
270.0 |
Wavelength [Å] |
0.97872 |
Experiment Date |
2012-10-07 |
Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset STR0003-1d.### details
Number of frames |
100 (1 - 100) |
Distance [mm] |
300.0 |
Oscillation width [°] |
1.00 |
Phi [°] |
90.0 |
Wavelength [Å] |
0.97872 |
Experiment Date |
2012-10-07 |
Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
Dataset STR0003-2.### details
Number of frames |
250 (1 - 250) |
Distance [mm] |
280.0 |
Oscillation width [°] |
1.00 |
Wavelength [Å] |
0.97872 |
Experiment Date |
2012-10-07 |
Equipment |
21-ID-F
at APS (Advanced Photon Source)
|
