Diffraction project datasets IDP95623_5U4H
- Resolution: 1.05 Å
- Space group: P 1 21 1
PDB website for 5U4H
doi:10.18430/m35u4h
Project details

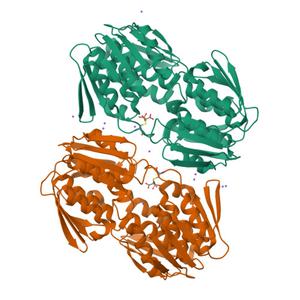

| Title | 1.05 Angstrom Resolution Crystal Structure of UDP-N-acetylglucosamine 1-carboxyvinyltransferase from Acinetobacter baumannii in Covalently Bound Complex with (2R)-2-(phosphonooxy)propanoic Acid. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 76.29 x 70.08 x 78.11 |
| Unit cell angles [°] | 90.0, 110.1, 90.0 |

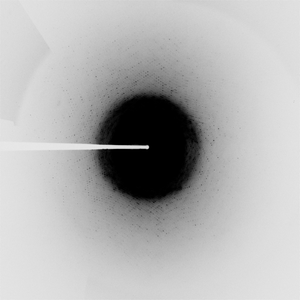

Dataset idp95623cut-a_2_1_1.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 90.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-06-30 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
