Diffraction project datasets IDP95518_5um7
- Resolution: 1.62 Å
- Space group: C 2 2 21
PDB website for 5UM7
PDB validation report for 5UM7
doi:10.18430/m35um7
Project details

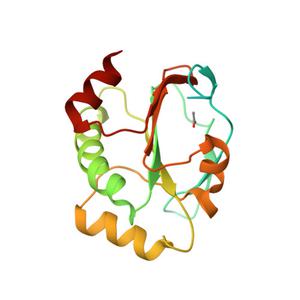

| Title | Crystal structure of the reduced state of the thiol-disulfide reductase SdbA from Streptococcus gordonii |
| Authors | Stogios, P.J., Evdokimova, E., Wawrzak, Z., Yim, V., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.24 / 0.29 |
| Unit cell edges [Å] | 49.25 x 49.32 x 196.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset SGO0001nat1_collect_sweep2_####.osc details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2015-07-27 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
