Diffraction project datasets IDP95506_6C4V
- Resolution: 1.9 Å
- Space group: P 61 2 2
Uniprot website for I6X8D2
PDB website for 6C4V
PDB validation report for 6C4V
doi:10.18430/m36c4v
Project details

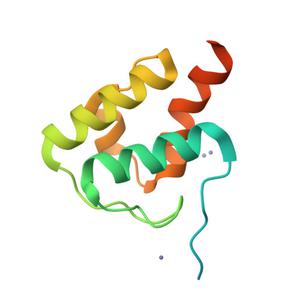

| Title | 1.9 Angstrom Resolution Crystal Structure of Acyl Carrier Protein Domain (residues 1350-1461) of Polyketide Synthase Pks13 from Mycobacterium tuberculosis |
| Authors | Minasov, G., Brunzelle, J.S., Shuvalova, L., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Kwon, K., Anderson, W.F., Satchell, K.J.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 58.19 x 58.19 x 101.68 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

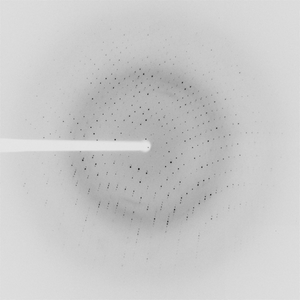

Dataset idp95506-4cut-sm-a_2_2_3.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-10-17 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |

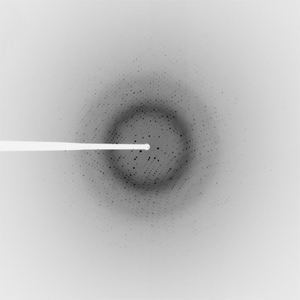

Dataset idp95506-9cut-sm-a_2_2_1.### details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 130.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-10-17 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
