Diffraction project datasets IDP95180_5HL8
- Resolution: 1.93 Å
- Space group: P 21 21 21
PDB website for 5HL8
doi:10.18430/m35hl8
Project details

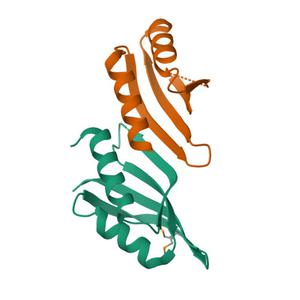

| Title | 1.93 Angstrom resolution crystal structure of a pullulanase-specific type II secretion system integral cytoplasmic membrane protein GspL (C-terminal fragment; residues 309-397) from Klebsiella pneumoniae subsp. pneumoniae NTUH-K2044 |
| Authors | Halavaty, A.S., Minasov, G., Kiryukhina, O., Grimshaw, S., Light, S., Dubrovska, I., Shuvalova, L., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.23 / 0.28 |
| Unit cell edges [Å] | 50.38 x 51.28 x 117.02 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

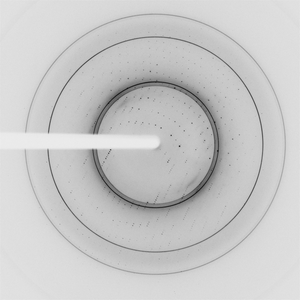

Dataset idp95180-1-sm-cut-c_1_1_7.### details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 30.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2015-12-15 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
