Diffraction project datasets IDP95107_5hj1
- Resolution: 1.5 Å
- Space group: P 41 21 2
PDB website for 5HJ1
PDB validation report for 5HJ1
doi:10.18430/m35hj1
Project details

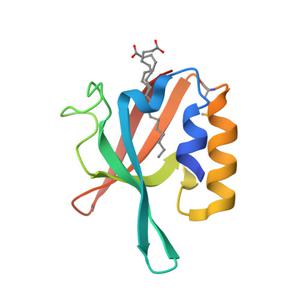

| Title | Crystal structure of PDZ domain of pullulanase C protein of type II secretion system from Klebsiella pneumoniae in complex with fatty acid |
| Authors | Filippova, E.V., Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Grimshaw, S., Kwon, K., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 47.64 x 47.64 x 93.20 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp95107-1sm-cut-a_1_2_1.### details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 140.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-12-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
