Diffraction project datasets IDP92725_4o23
- Resolution: 2.09 Å
- Space group: P 21 21 21
PDB website for 4O23
PDB validation report for 4O23
doi:10.18430/m34o23
Project details

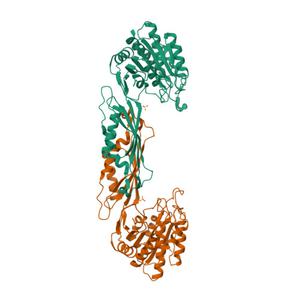

| Title | Crystal structure of mono-zinc form of succinyl diaminopimelate desuccinylase from Neisseria meningitidis MC58 |
| Authors | Nocek, B., Holz, R., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.24 |
| Unit cell edges [Å] | 55.32 x 111.39 x 132.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset nm-index-h5-glycerol.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 274.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 0.0002 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97921 |
| Experiment Date | 2010-08-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
