Diffraction project datasets IDP92622_4ixh
- Resolution: 2.105 Å
- Space group: P 1 21 1
PDB website for 4IXH
PDB validation report for 4IXH
doi:10.18430/m34ixh
Project details

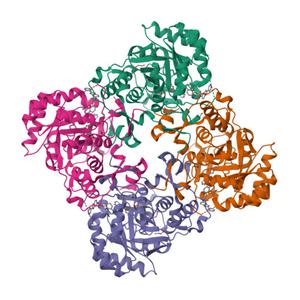

| Title | Crystal Structure of the Catalytic Domain of the Inosine Monophosphate Dehydrogenase from Cryptosporidium parvum |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Kavitha, M., Hedstrom, L., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 89.19 x 92.02 x 92.14 |
| Unit cell angles [°] | 90.0, 103.9, 90.0 |
Dataset imp-q21-ih5eg.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 300.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0033 |
| Wavelength [Å] | 0.97923 |
| Experiment Date | 2012-10-14 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
