Diffraction project datasets IDP92134_5UPR
- Resolution: 2.0 Å
- Space group: P 1 21 1
Uniprot website for A0A125YP67
PDB website for 5UPR
PDB validation report for 5UPR
doi:10.18430/m35upr
Project details

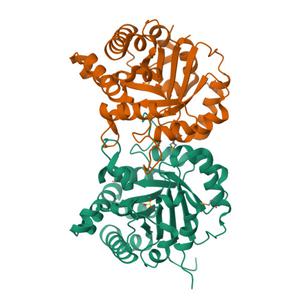

| Title | X-ray structure of a putative triosephosphate isomerase from Toxoplasma gondii ME49 |
| Authors | Filippova, E.V., Wawrzak, Z., Minasov, G., Cardona-Correa, A., Bishop, B., Anderson, W.F., Ngo, H., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 56.37 x 115.53 x 78.72 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

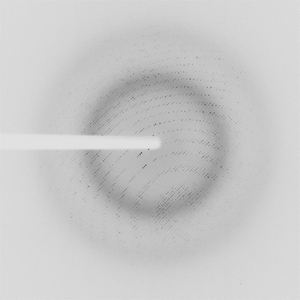

Dataset idp92134-1cut-c_1_1_1.### details
| Number of frames | 350 (1 - 350) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-10-27 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
