Diffraction project datasets IDP92102_5E5I
- Resolution: 1.7 Å
- Space group: P 1
PDB website for 5E5I
doi:10.18430/M35E5I
Project details

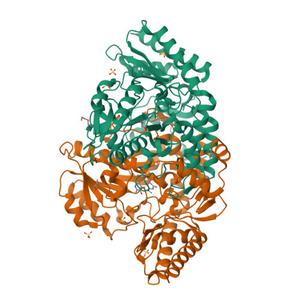

| Title | Structure of the ornithine aminotransferase from Toxoplasma gondii in complex with inactivator |
| Authors | Filippova, E.V., Minasov, G., Flores, K., Le, H.V., Silverman, R.B., McLeod, R.L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 56.41 x 61.44 x 63.67 |
| Unit cell angles [°] | 100.9, 92.5, 108.1 |

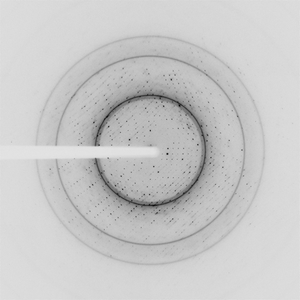

Dataset TgOAT-c18-j_1_3_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 200.0 |
| Wavelength [Å] | 0.97889 |
| Experiment Date | 2015-03-23 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |

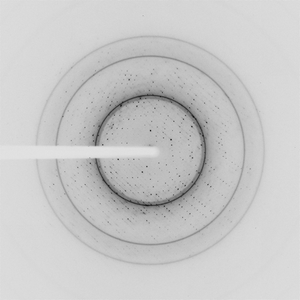

Dataset TgOAT-c18-j-2_1_3_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97889 |
| Experiment Date | 2015-03-23 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
