Diffraction project datasets IDP91991_4eqb

  • Method: Molecular Replacement
  • Resolution: 1.5 Å
  • Space group: P 1
Download all images (8.4 GB)

PDB website for 4EQB

doi:10.18430/M34EQB

Project details

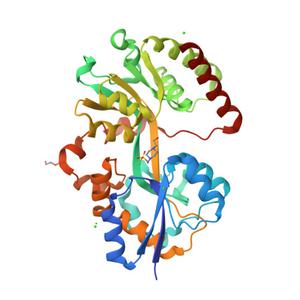

Title 1.5 Angstrom Crystal Structure of Spermidine/Putrescine ABC Transporter Substrate-Binding Protein PotD from Streptococcus pneumoniae strain Canada MDR_19A in Complex with Calcium and HEPES
Authors Minasov, G., Wawrzak, Z., Stogios, P.J., Kudritska, M., Yim, V., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 45.63 x 54.35 x 76.70
Unit cell angles [°] 75.8, 80.9, 77.6

Dataset IDP91991-3.### details

Number of frames 480 (1 - 480)
Distance [mm] 200.0
Oscillation width [°] 0.75
Wavelength [nm] 0.97856
Experiment Date 2012-04-12
Equipment 21-ID-G at APS (Advanced Photon Source)

Dataset IDP91991-3b.### details

Number of frames 260 (1 - 260)
Distance [mm] 200.0
Oscillation width [°] 0.75
Phi [°] 165.0
Wavelength [nm] 0.97856
Experiment Date 2012-04-12
Equipment 21-ID-G at APS (Advanced Photon Source)
