Diffraction project datasets IDP91975_4ohn
- Method: Molecular Replacement
- Resolution: 1.37 Å
- Space group: P 61
PDB website for 4OHN
PDB validation report for 4OHN
doi:10.18430/m34ohn
Project details

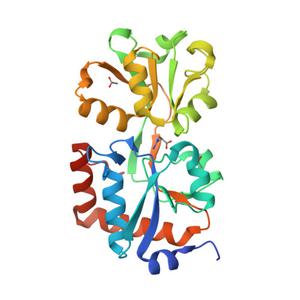

| Title | Crystal structure of an ABC uptake transporter substrate binding protein from Streptococcus pneumoniae with Bound Histidine |
| Authors | Brunzelle, J.S., Wawrzak, W., Yim, Y., Kudritska, M., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.15 |
| Unit cell edges [Å] | 87.13 x 87.13 x 70.95 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP91975-1.### details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 115.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -30.0 |
| Wavelength [Å] | 1.28756 |
| Experiment Date | 2013-07-26 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset IDP91975-1b.### details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 1.28756 |
| Experiment Date | 2013-07-26 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
