Diffraction project datasets IDP91955_4h59

  • Method: SAD
  • Resolution: 1.66 Å
  • Space group: P 21 21 21
Download all images (2.8 GB)

PDB website for 4H59

doi:10.18430/M34H59

Project details

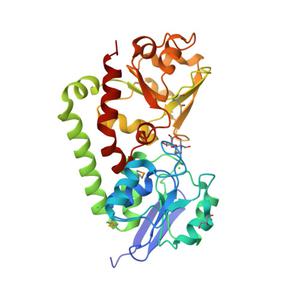

Title Crystal structure of iron uptake ABC transporter substrate-binding protein PiaA from Streptococcus pneumoniae Canada MDR_19A bound to Bis-tris propane
Authors Stogios, P.J., Wawrzak, Z., Kudritska, M., Minasov, G., Yim, V., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 57.04 x 68.04 x 99.27
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset IDP91955-9.### details

Number of frames 400 (1 - 400)
Distance [mm] 180.0
Oscillation width [°] 0.40
Phi [°] 100.0
Wavelength [Å] 0.97856
Experiment Date 2012-06-30
Equipment 21-ID-G at APS (Advanced Photon Source)
