Diffraction project datasets IDP91871_5hnm
- Method: Molecular Replacement
- Resolution: 2.3 Å
- Space group: P 1
PDB website for 5HNM
PDB validation report for 5HNM
doi:10.18430/m35hnm
Project details

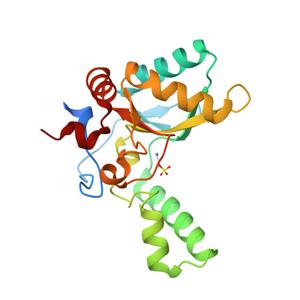

| Title | Crystal structure of vancomycin resistance D,D-pentapeptidase VanY E175A mutant from VanB-type resistance cassette in complex with Zn(II) |
| Authors | Stogios, P.J., Chun, J., Wawrzak, Z., Evdokimova, E., Di Leo, R., Yim, V., Courvalin, P., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.22 / 0.28 |
| Unit cell edges [Å] | 55.71 x 77.32 x 85.87 |
| Unit cell angles [°] | 101.3, 108.1, 90.1 |
Dataset IDP91871-1.### details
| Number of frames | 640 (1 - 640) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2014-08-08 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
Dataset IDP91871-1b.### details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2014-08-08 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
