Diffraction project datasets IDP91764_4e5s
- Resolution: 1.952 Å
- Space group: P 1 21 1
PDB website for 4E5S
PDB validation report for 4E5S
doi:10.18430/m34e5s
Project details

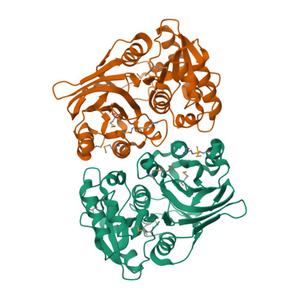

| Title | Crystal structure of MccFlike protein (BA_5613) from Bacillus anthracis str. Ames |
| Authors | Nocek, B., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 74.59 x 85.80 x 125.15 |
| Unit cell angles [°] | 90.0, 92.0, 90.0 |
Dataset xtal-1-inf.####.img details
| Number of frames | 183 (1 - 183) |
| Distance [mm] | 256.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97949 |
| Experiment Date | 2012-02-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset xtal-1.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 256.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97931 |
| Experiment Date | 2012-02-09 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
