Diffraction project datasets IDP91568_4o96

  • Method: SAD
  • Resolution: 2.6 Å
  • Space group: P 4 21 2
Download all images (736.7 MB)

PDB website for 4O96

doi:10.18430/M34O96

Project details

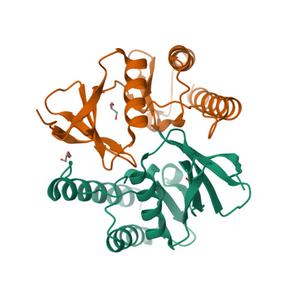

Title 2.60 Angstrom resolution crystal structure of a protein kinase domain of type III effector NleH2 (ECs1814) from Escherichia coli O157:H7 str. Sakai
Authors Halavaty, A.S., Anderson, S.M., Wawrzak, Z., Kudritska, M., Skarina, T., Anderson, W.F., Savchenko, A.
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 147.25 x 147.25 x 83.05
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset IDP91568-3b.### details

Number of frames 90 (1 - 90)
Distance [mm] 320.0
Oscillation width [°] 0.75
Phi [°] 70.0
Wavelength [Å] 1.03316
Experiment Date 2012-08-20
Equipment 21-ID-G at APS (Advanced Photon Source)
