Diffraction project datasets IDP91538_4e4r
- Method: SAD
- Resolution: 1.44 Å
- Space group: P 41 21 2
PDB website for 4E4R
doi:10.18430/M34E4R
Project details

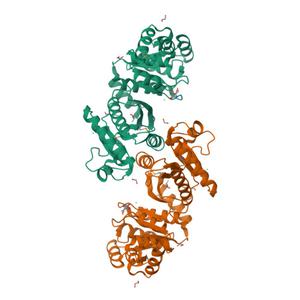

| Title | EutD phosphotransacetylase from Staphylococcus aureus |
| Authors | Osipiuk, J., Zhou, M., Peterson, S., Anderson, W.F., Joachimiak, A. |
| R / Rfree | 0.13 / 0.18 |
| Unit cell edges [Å] | 54.60 x 54.60 x 202.90 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp91538_4E4R.####.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 309.7 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-03-07 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset idp91538_4E4R.####.img details
| Number of frames | 360 (301 - 660) |
| Distance [mm] | 219.8 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -110.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-03-07 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
