Diffraction project datasets IDP91511_4err
- Method: Molecular Replacement
- Resolution: 1.55 Å
- Space group: P 21 21 21
PDB website for 4ERR
PDB validation report for 4ERR
doi:10.18430/m34err
Project details

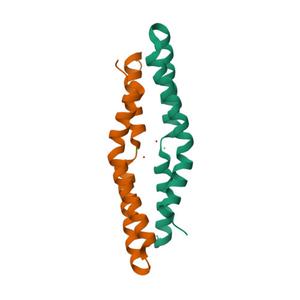

| Title | 1.55 Angstrom Crystal Structure of the Four Helical Bundle Membrane Localization Domain (4HBM) of the Vibrio vulnificus MARTX Effector Domain DUF5 |
| Authors | Minasov, G., Wawrzak, Z., Geissler, B., Shuvalova, L., Dubrovska, I., Winsor, J., Satchell, K.J., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 44.90 x 49.87 x 72.10 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset DFU-a.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2012-02-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
