Diffraction project datasets IDP91398_4g65

  • Method: SAD
  • Resolution: 2.09 Å
  • Space group: C 2 2 21
Download all images (1.9 GB)

PDB website for 4G65

doi:10.18430/M34G65

Project details

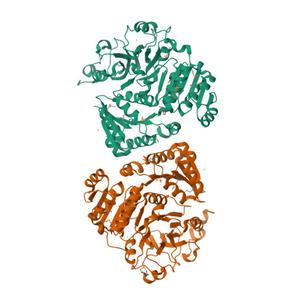

Title Potassium transporter peripheral membrane component (trkA) from Vibrio vulnificus
Authors Filippova, E.V., Wawrzak, Z., Skarina, T., Onopriyenko, O., Edwards, A., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID)
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 68.11 x 225.26 x 139.52
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset IDP91398-1.### details

Number of frames 270 (1 - 270)
Distance [mm] 280.0
Oscillation width [°] 0.60
Phi [°] 170.0
Wavelength [Å] 0.97856
Experiment Date 2012-07-06
Equipment 21-ID-G at APS (Advanced Photon Source)
