Diffraction project datasets IDP91166_3t4e
- Method: Molecular Replacement
- Resolution: 1.95 Å
- Space group: P 1 21 1
PDB website for 3T4E
PDB validation report for 3T4E
doi:10.18430/m33t4e
Project details

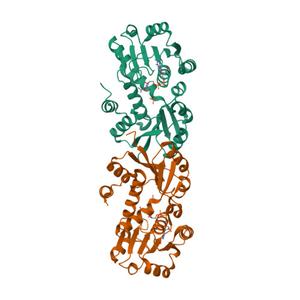

| Title | 1.95 Angstrom Crystal Structure of Shikimate 5-dehydrogenase (AroE) from Salmonella enterica subsp. enterica serovar Typhimurium in Complex with NAD |
| Authors | Minasov, G., Light, S.H., Halavaty, A., Shuvalova, L., Dubrovska, I., Winsor, J., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 40.05 x 111.39 x 66.38 |
| Unit cell angles [°] | 90.0, 96.2, 90.0 |
Dataset idp91166a.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 55.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2011-07-14 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
