Diffraction project datasets IDP91077_5DGX
- Resolution: 1.73 Å
- Space group: P 1 21 1
Uniprot website for Q14JW6
PDB website for 5DGX
PDB validation report for 5DGX
doi:10.18430/m35dgx
Project details
| Title | 1.73 Angstrom resolution crystal structure of the ABC-ATPase domain (residues 357-609) of lipid A transport protein (msbA) from Francisella tularensis subsp. tularensis SCHU S4 in complex with ADP |
| Authors | Halavaty, A.S., Minasov, G., Dubrovska, I., Kiryukhina, O., Grimshaw, S., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 39.60 x 70.89 x 46.65 |
| Unit cell angles [°] | 90.0, 103.8, 90.0 |

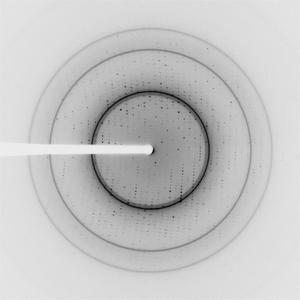

Dataset idp91077-5-b.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 260.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-08-24 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
