Diffraction project datasets IDP90987_4MHB
- Resolution: 1.75 Å
- Space group: P 43 21 2
PDB website for 4MHB
doi:10.18430/m34mhb
Project details

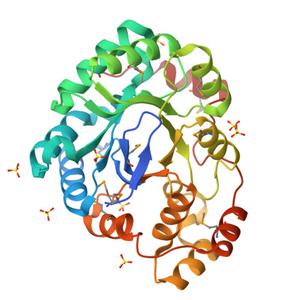

| Title | Structure of a putative reductase from Yersinia pestis |
| Authors | Anderson, S.M., Wawrzak, Z., Kudritska, M., Kwon, K., Rembert, P., Savchenko, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 128.75 x 128.75 x 277.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

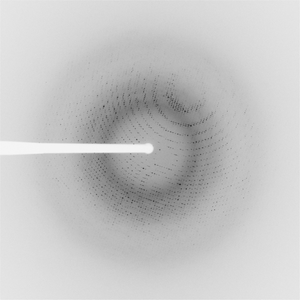

Dataset IDP90987-1.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -30.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2012-06-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
