Diffraction project datasets IDP90922_4IUO
- Resolution: 1.8 Å
- Space group: P 21 21 21
Uniprot website for P58687
PDB website for 4IUO
PDB validation report for 4IUO
doi:10.18430/m34iuo
Project details

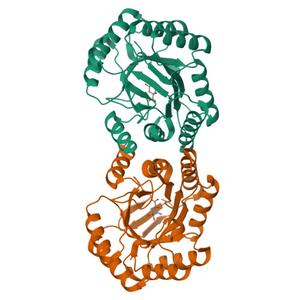

| Title | 1.8 Angstrom Crystal Structure of the Salmonella enterica 3-Dehydroquinate Dehydratase (aroD) K170M Mutant in Complex with Quinate |
| Authors | Light, S.H., Minasov, G., Duban, M.-E., Shuvalova, L., Kwon, K., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 36.91 x 72.80 x 170.91 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

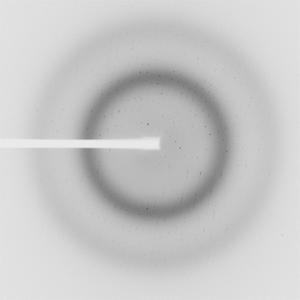

Dataset idp90922k170ms.### details
| Number of frames | 275 (1 - 275) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2012-11-19 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
