Diffraction project datasets IDP90922_4GUJ
- Resolution: 1.5 Å
- Space group: P 1 21 1
PDB website for 4GUJ
doi:10.18430/m34guj
Project details

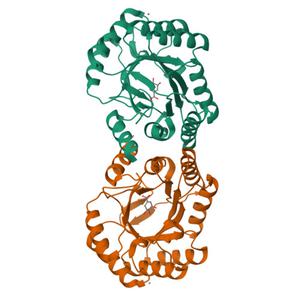

| Title | 1.50 Angstrom Crystal Structure of the Salmonella enterica 3-Dehydroquinate Dehydratase (aroD) in Complex with Shikimate |
| Authors | Light, S.H., Minasov, G., Duban, M.-E., Shuvalova, L., Kwon, K., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 48.62 x 74.97 x 63.04 |
| Unit cell angles [°] | 90.0, 100.5, 90.0 |

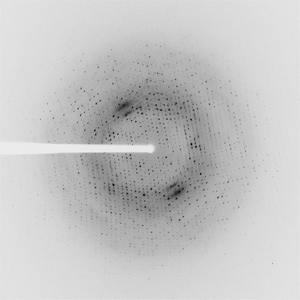

Dataset idp90922shk3_2.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 140.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2012-08-06 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
