Diffraction project datasets IDP90922_4GUI
- Resolution: 1.78 Å
- Space group: P 1 21 1
Uniprot website for P58687
PDB website for 4GUI
PDB validation report for 4GUI
doi:10.18430/m34gui
Project details

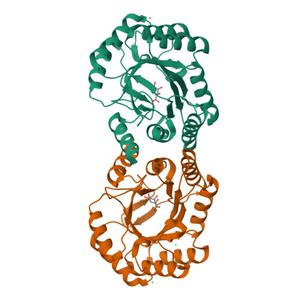

| Title | 1.78 Angstrom Crystal Structure of the Salmonella enterica 3-Dehydroquinate Dehydratase (aroD) in Complex with Quinate |
| Authors | Light, S.H., Minasov, G., Duban, M.-E., Shuvalova, L., Kwon, K., Lavie, A., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 48.67 x 74.43 x 63.14 |
| Unit cell angles [°] | 90.0, 100.6, 90.0 |

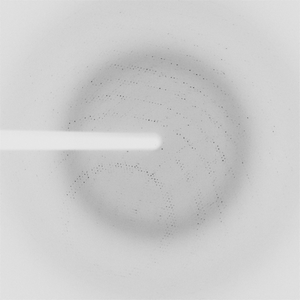

Dataset TpLmo0182p_1_2_8.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 290.0 |
| Oscillation width [°] | 0.60 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2015-10-27 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

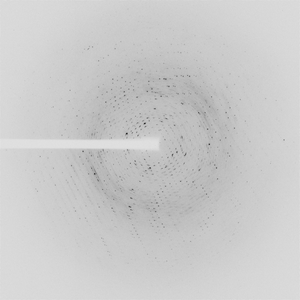

Dataset idp90922aaa.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2012-07-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
