Diffraction project datasets IDP90793_3ufg
- Resolution: 2.552 Å
- Space group: H 3
PDB website for 3UFG
PDB validation report for 3UFG
doi:10.18430/m33ufg
Project details

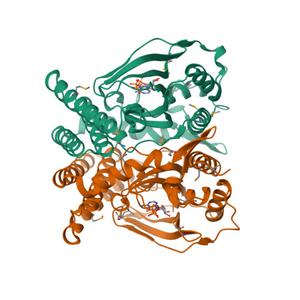

| Title | The crystal structure of glycyl-tRNA synthetase subunit alpha from Campylobacter jejuni subsp. jejuni NCTC in complex with ATP |
| Authors | Tan, K., Zhou, M., Peterson, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.26 |
| Unit cell edges [Å] | 114.58 x 114.58 x 157.71 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP90793B_PKa.####.img details
| Number of frames | 110 (1 - 110) |
| Distance [mm] | 327.2 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Phi [°] | 49.9734 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2011-02-23 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
