Diffraction project datasets IDP90793_3rf1
- Resolution: 2.2 Å
- Space group: H 3
PDB website for 3RF1
PDB validation report for 3RF1
doi:10.18430/m33rf1
Project details

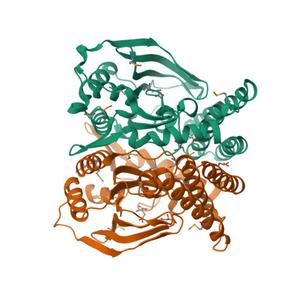

| Title | The crystal structure of glycyl-tRNA synthetase subunit alpha from Campylobacter jejuni subsp. jejuni NCTC 11168 |
| Authors | Tan, K., Zhang, R., Zhou, M., Hasseman, J., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 112.66 x 112.66 x 158.28 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP90793B4_PKa.####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 292.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -40.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -45.026 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2011-03-24 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
