Diffraction project datasets IDP90781_4mz1
- Resolution: 2.3991 Å
- Space group: I 4 2 2
PDB website for 4MZ1
PDB validation report for 4MZ1
doi:10.18430/m34mz1
Project details

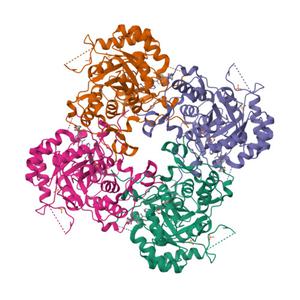

| Title | Crystal Structure of the Inosine 5'-monophosphate Dehydrogenase, with a Internal Deletion of CBS Domain from Campylobacter jejuni complexed with inhibitor compound P12 |
| Authors | Kim, Y., Makowska-Grzyska, M., Gu, M., Anderson, W.F., Joachimiak, A., CSGID, Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 118.06 x 118.06 x 435.16 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset imp-p12-m2a5suc.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 390.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -60.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | -0.0176 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2012-06-20 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
