Diffraction project datasets IDP90718_3n4j
- Method: Molecular Replacement
- Resolution: 1.47 Å
- Space group: P 31 2 1
PDB website for 3N4J
PDB validation report for 3N4J
doi:10.18430/m33n4j
Project details

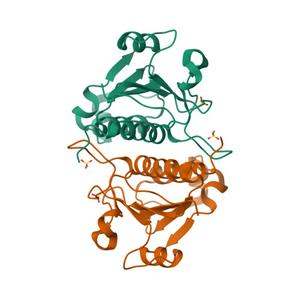

| Title | Putative RNA methyltransferase from Yersinia pestis |
| Authors | Osipiuk, J., Maltseva, N., Peterson, S., Anderson, W.F., Joachimiak, A., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.19 |
| Unit cell edges [Å] | 79.72 x 79.72 x 44.64 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |
Dataset IDP90718_3N4J.####.img details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 210.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2010-03-08 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
Dataset IDP90718_3N4J.####.img details
| Number of frames | 170 (301 - 470) |
| Distance [mm] | 210.4 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 0.0001 |
| Phi [°] | -0.0108 |
| Wavelength [Å] | 0.97929 |
| Experiment Date | 2010-03-08 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
