Diffraction project datasets IDP90626_3TI2
- Resolution: 1.9 Å
- Space group: P 1 21 1
Uniprot website for Q9KRB0
PDB website for 3TI2
PDB validation report for 3TI2
doi:10.18430/m33ti2
Project details

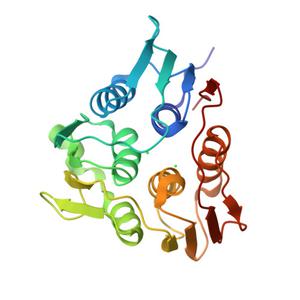

| Title | 1.90 Angstrom resolution crystal structure of N-terminal domain 3-phosphoshikimate 1-carboxyvinyltransferase from Vibrio cholerae |
| Authors | Light, S.H., Minasov, G., Halavaty, A.S., Shuvalova, L., Papazisi, L., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 77.76 x 40.07 x 133.86 |
| Unit cell angles [°] | 90.0, 90.3, 90.0 |

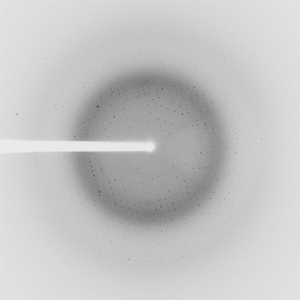

Dataset idp90926f.### details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 270.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2011-07-22 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
