Diffraction project datasets IDP90611_3n2i
- Method: Molecular Replacement
- Resolution: 2.25 Å
- Space group: I 41 2 2
PDB website for 3N2I
PDB validation report for 3N2I
doi:10.18430/m33n2i
Project details

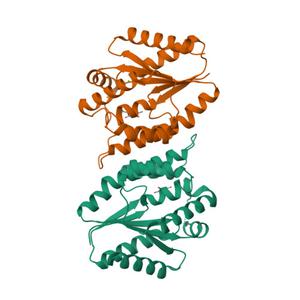

| Title | 2.25 Angstrom resolution crystal structure of a thymidylate kinase (tmk) from Vibrio cholerae O1 biovar eltor str. N16961 in complex with thymidine |
| Authors | Halavaty, A.S., Minasov, G., Shuvalova, L., Winsor, J., Dubrovska, I., Peterson, S., Anderson, W.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 92.60 x 92.60 x 231.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset idp90611e.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 62.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2010-04-22 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
